Battery Pack
Through self-assessments that provide proven performance and cell quality results,
customers can modify and customize their needs to fit their requirements.
Battery Pack
Through self-assessments that provide proven performance and cell quality results,
customers can modify and customize their needs to fit their requirements.

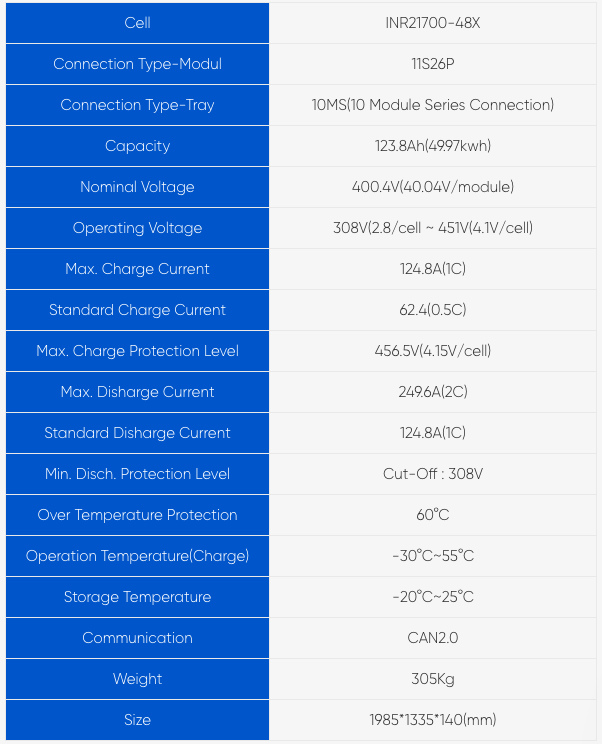

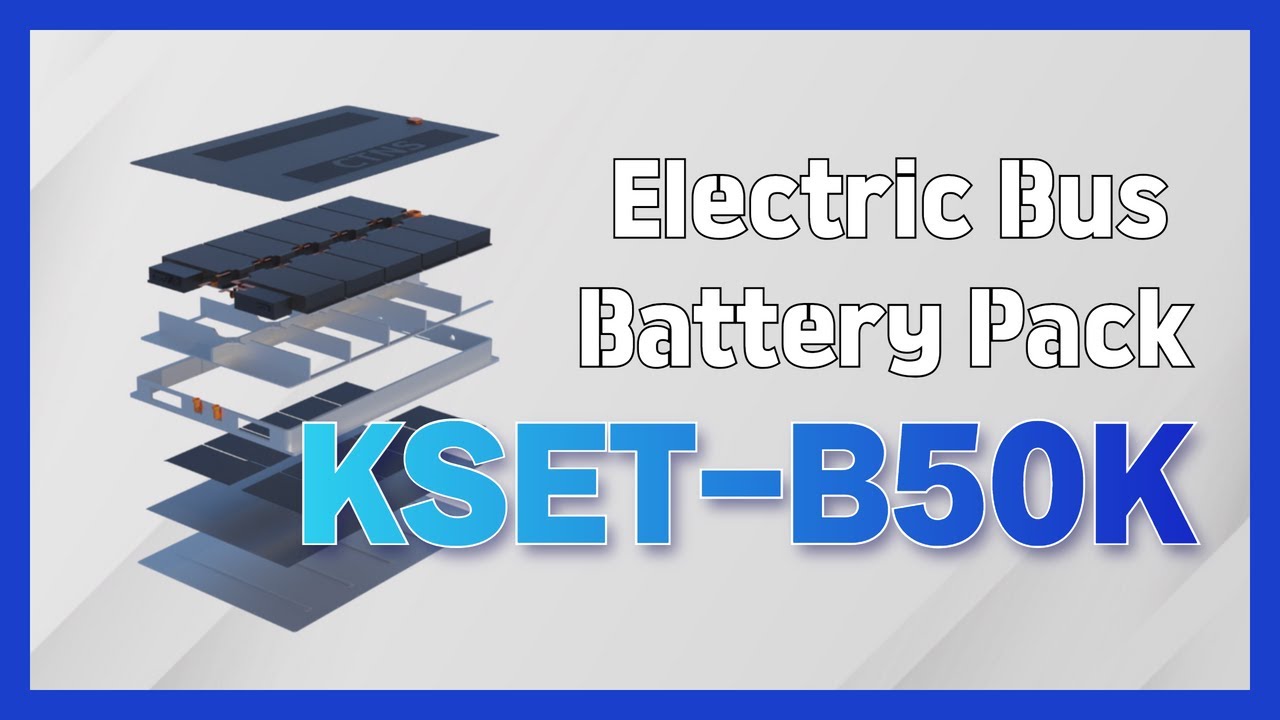

Battery Pack for Electric Bus KSET-B50K
This battery pack for electrical buses, self-developed by CTNS, utilizes cylindrical lithium-ion batteries and provides battery pack optimizations suitable for electric bus characteristics.

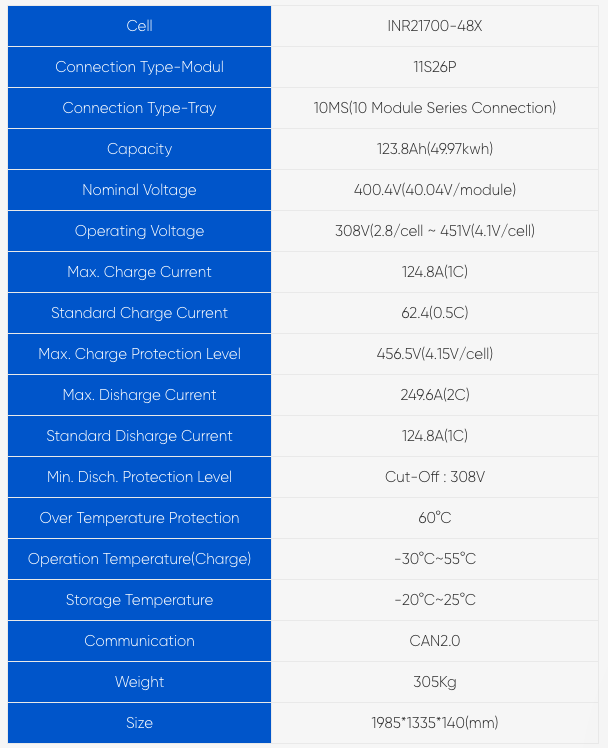

Battery Pack for Electric Bus KSET-B50K
This battery pack for electrical buses, self-developed by CTNS, utilizes cylindrical lithium-ion batteries and provides battery pack optimizations suitable for electric bus characteristics.
Lithium-ion
RM-2430
24V 30Ah
Nominal Voltage : 25.2V
Operating Voltage range : 21~29.4V
Standard Charge/Discharge : Ch. 7~10A/Disch. 30A
Max. Charge/Discharge : Ch. 15A/Disch. 60A
Ah : 30Ah
Size : 180(L)*150(W)*80(H)
RM-2450
24V 50Ah
Nominal Voltage : 25.2V
Operating Voltage range : 21~29.4V
Standard Charge/Discharge : Ch. 10~15A/Disch. 50A
Max. Charge/Discharge : Ch. 25A/Disch. 100A
Ah : 50Ah
Size : 200(L)*130(W)*160(H)
RM-2480
24V 80Ah
Nominal Voltage : 25.2V
Operating Voltage range : 21~29.4V
Standard Charge/Discharge : Ch. 20A/Disch. 80A
Max. Charge/Discharge : Ch. 40A/Disch. 160A
Ah : 80Ah
Size : 200(L)*200(W)*160(H)
RM -24100
24V 100Ah
Nominal Voltage : 25.2V
Operating Voltage range : 21~29.4V
Standard Charge/Discharge : Ch. 20~25A/Disch. 100A
Max. Charge/Discharge : Ch. 50A/Disch. 200A
Ah : 100Ah
Size : 200(L)*250(W)*160(H)
RM-24150
24V 150Ah
Nominal Voltage : 25.2V
Operating Voltage range : 21~29.4V
Standard Charge/Discharge : Ch. 30~40A/Disch. 150A
Max. Charge/Discharge : Ch. 70A/Disch. 300A
Ah : 150Ah
Size : 250(L)*300(W)*160(H)
RM-24200
24V 200Ah
Nominal Voltage : 25.2V
Operating Voltage range : 21~29.4V
Standard Charge/Discharge : Ch. 50A/Disch. 200A
Max. Charge/Discharge : Ch. 100A/Disch. 400A
Ah : 200Ah
Size : 250(L)*400(W)*160(H)
RM-2430
24V 300Ah
Nominal Voltage : 25.2V
Operating Voltage range : 21~29.4V
Standard Charge/Discharge : Ch. 3A/Disch. 10A
Max. Charge/Discharge : Ch. 5A/Disch. 20A
Ah : 10Ah
Size : 100(L)*125(W)*80(H)

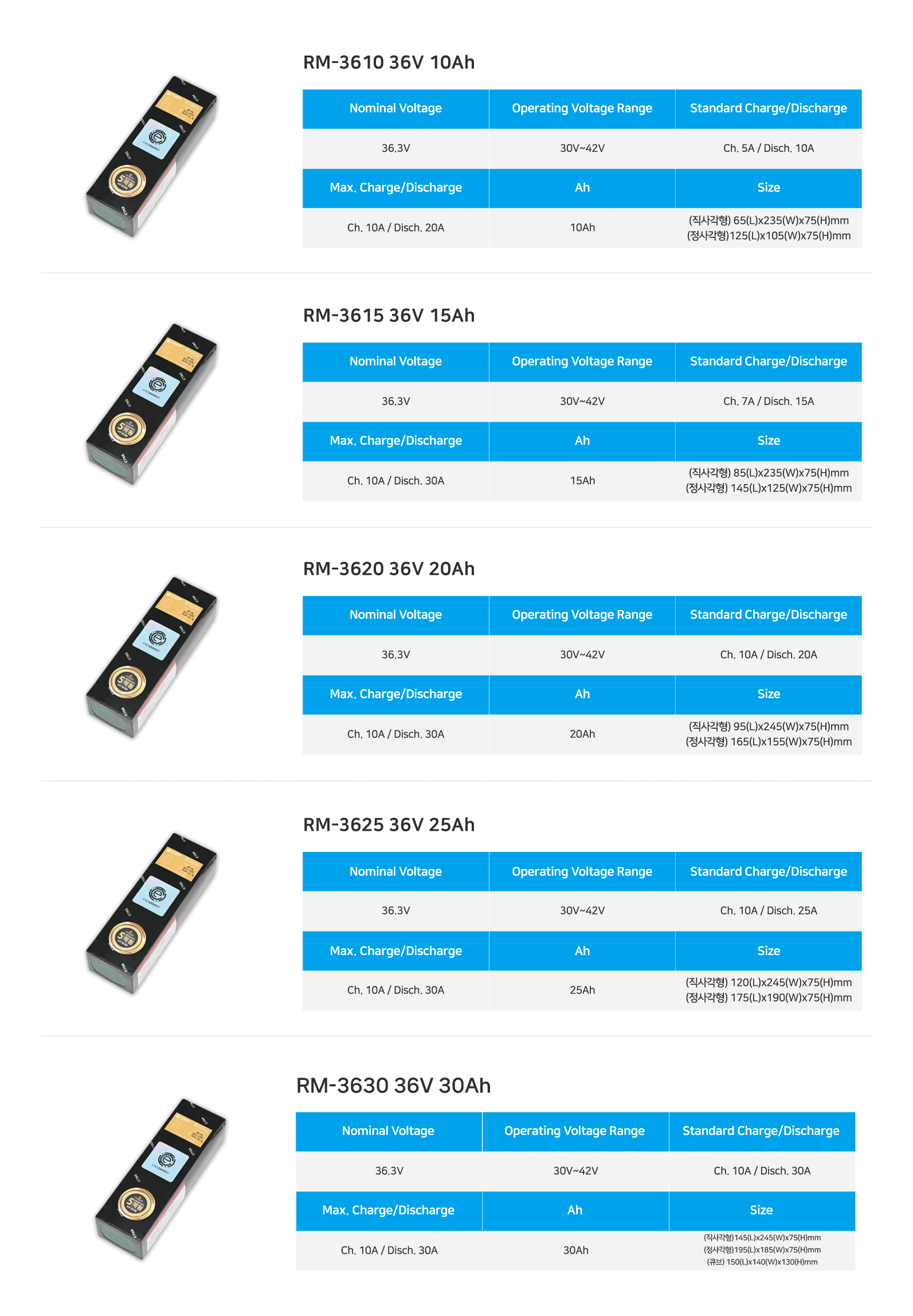

RM-3610
36V 10Ah
Nominal Voltage : 36V
Operating Voltage range : 30~42V
Standard Charge/Discharge : Ch. 3A/Disch. 10A
Max. Charge/Discharge : Ch. 5A/Disch. 20A
Ah : 10Ah
Size : 100(L)*125(W)*80(H)
RM-3620
36V 20Ah
Nominal Voltage : 36V
Operating Voltage range : 30~42V
Standard Charge/Discharge : Ch. 5A/Disch. 20A
Max. Charge/Discharge : Ch. 10A/Disch. 40A
Ah : 20Ah
Size : 100(L)*240(W)*80(H)
RM-3640
36V 40Ah
Nominal Voltage : 36V
Operating Voltage range : 30~42V
Standard Charge/Discharge : Ch. 10A/Disch. 40A
Max. Charge/Discharge : Ch. 20A/Disch. 80A
Ah : 100Ah
Size : 200(L)*240(W)*80(H)
RM-3680
36V 80Ah
Nominal Voltage : 36V
Operating Voltage range : 30~42V
Standard Charge/Discharge : Ch. 20A/Disch. 80A
Max. Charge/Discharge : Ch. 40A/Disch. 160A
Ah : 80Ah
Size : 200(L)*240(W)*160(H)
RM-36100
36V 100Ah
Nominal Voltage : 36V
Operating Voltage range : 30~42V
Standard Charge/Discharge : Ch. 25A/Disch. 100A
Max. Charge/Discharge : Ch. 50A/Disch. 200A
Ah : 100Ah
Size : 240(L)*240(W)*160(H)
RM-4830
48V 30Ah
Nominal Voltage : 46.8V
Operating Voltage range : 39~54.6V
Standard Charge/Discharge : Ch. 8A/Disch. 30A
Max. Charge/Discharge : Ch. 15A/Disch. 60A
Ah : 30Ah
Size : 310(L)*250(W)*80(H)
RM-4850
48V 50Ah
Nominal Voltage : 46.8V
Operating Voltage range : 39~54.6V
Standard Charge/Discharge : Ch. 13A/Disch. 50A
Max. Charge/Discharge : Ch. 25A/Disch. 100A
Ah : 50Ah
Size : 310(L)*250(W)*100(H)
RM-48100
48V 100Ah
Nominal Voltage : 46.8V
Operating Voltage range : 39~54.6V
Standard Charge/Discharge : Ch. 25A/Disch. 100A
Max. Charge/Discharge : Ch. 50A/Disch. 200A
Ah : 100Ah
Size : 340(L)*250(W)160(H)
RM-48150
48V 30Ah
Nominal Voltage : 46.8V
Operating Voltage range : 39~54.6V
Standard Charge/Discharge : Ch. 35A/Disch. 150A
Max. Charge/Discharge : Ch. 70A/Disch. 300A
Ah : 150Ah
Size : 500(L)*250(W)*160(H)
RM-6015
60V 15Ah
Nominal Voltage : 57.6V
Operating Voltage range : 48~67.2V
Standard Charge/Discharge : Ch. 4A/Disch. 15A
Max. Charge/Discharge : Ch. 8A/Disch. 30A
Ah : 15Ah
Size : 380(L)*75(W)*80(H)
RM-6030
60V 30Ah
Nominal Voltage : 57.6V
Operating Voltage range : 48~67.2V
Standard Charge/Discharge : Ch. 8A/Disch. 30A
Max. Charge/Discharge : Ch. 15A/Disch. 60A
Ah : 30Ah
Size : 380(L)*250(W)*80(H)
RM-6050
60V 50Ah
Nominal Voltage : 57.6V
Operating Voltage range : 48~67.2V
Standard Charge/Discharge : Ch. 13A/Disch. 50A
Max. Charge/Discharge : Ch. 25A/Disch. 100A
Ah : 50Ah
Size : 380(L)*250(W)*160(H)
RM-60100
60V 100Ah
Nominal Voltage : 57.6V
Operating Voltage range : 48~67.2V
Standard Charge/Discharge : Ch. 25A/Disch. 100A
Max. Charge/Discharge : Ch. 50A/Disch. 200A
Ah : 100Ah
Size : 380(L)*250(W)*160(H)
RM-7230
72V 30Ah
Nominal Voltage : 72V
Operating Voltage range : 60~84V
Standard Charge/Discharge : Ch. 8A/Disch. 30A
Max. Charge/Discharge : Ch. 15A/Disch. 60A
Ah : 30Ah
Size : 250(L)*250(W)*160(H)
RM-7250
60V 100Ah
Nominal Voltage : 72V
Operating Voltage range : 60~84V
Standard Charge/Discharge : Ch. 13A/Disch. 50A
Max. Charge/Discharge : Ch. 25A/Disch. 100A
Ah : 50Ah
Size : 250(L)*250(W)*160(H)
RM-72100
72V 100Ah
Nominal Voltage : 72V
Operating Voltage range : 60~84V
Standard Charge/Discharge : Ch. 25A/Disch. 100A
Max. Charge/Discharge : Ch. 50A/Disch. 200A
Ah : 100Ah
Size : 250(L)*490(W)*160(H)
Lithium-ion
36V KC Certification
48V KC Certification

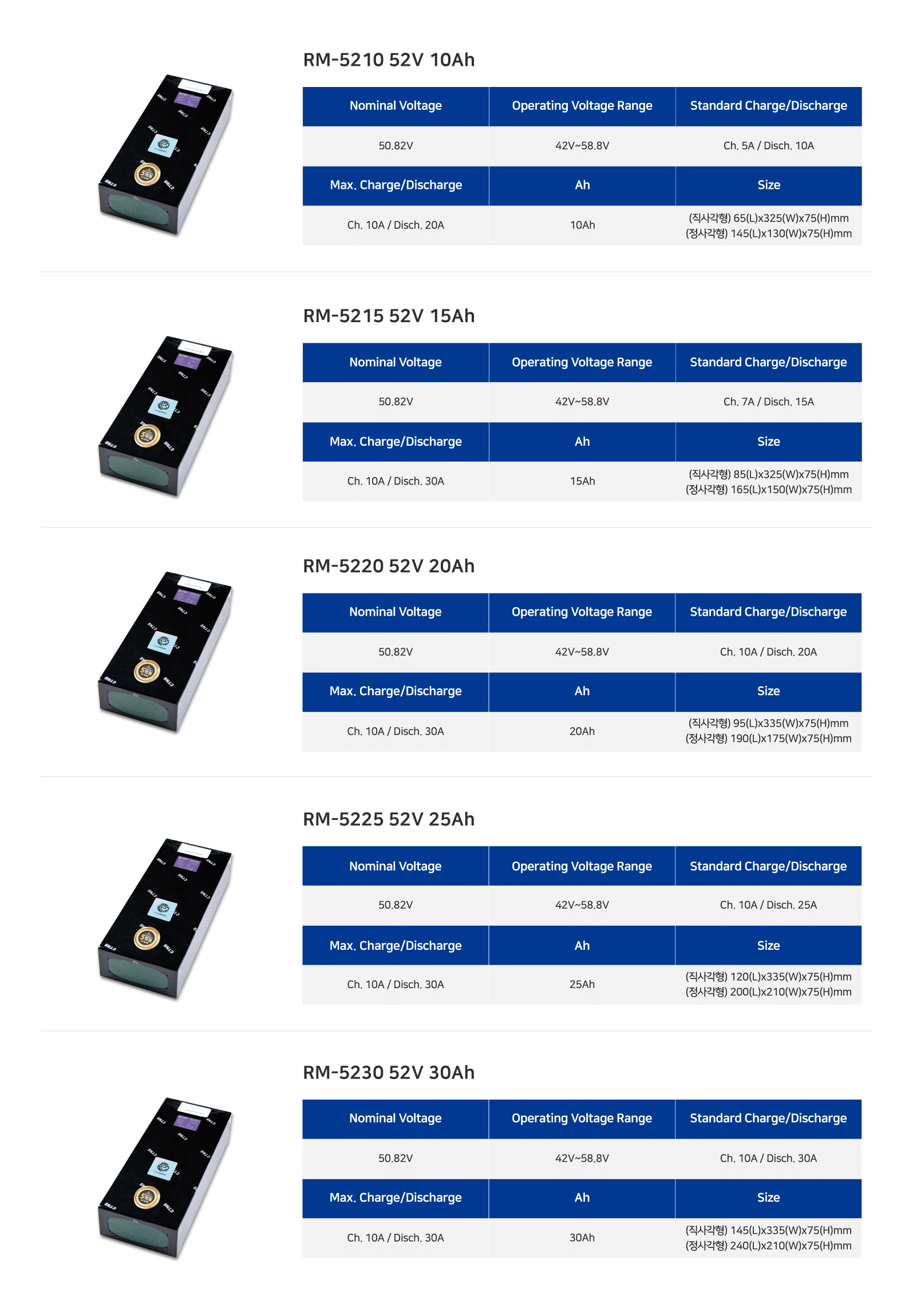

52V KC Certification
60V KC Certification
LiFePo4
RM-1230-A
12V 30Ah
Nominal Voltage : 12.8V
Operating Voltage range : 10~14.4V
Standard Charge/Discharge : Ch. 7A/Disch. 30A
Max. Charge/Discharge : Ch. 15A/Disch. 60A
Ah : 30Ah
Size : 197(L)*128(W)*220(H)
RM-12300
12V 300Ah
Nominal Voltage : 12.8V
Operating Voltage range : 10~14.4V
Standard Charge/Discharge : Ch. 70A/Disch. 300A
Max. Charge/Discharge : Ch. 150A/Disch. 600A
Ah : 300Ah
Size : 380(L)*185(W)*255(H)
RM-12600
12V 600Ah
Nominal Voltage : 12.8V
Operating Voltage range : 10~14.4V
Standard Charge/Discharge : Ch. 150A/Disch. 600A
Max. Charge/Discharge : Ch. 300A/Disch. 1200A
Ah : 600Ah
Size : 380(L)*360(W)*255(H)
RM-12600-B
12V 600Ah
Nominal Voltage : 12.8V
Operating Voltage range : 10~14.4V
Standard Charge/Discharge : Ch. 150A/Disch. 600A
Max. Charge/Discharge : Ch. 300A/Disch. 1200A
Ah : 600Ah
Size : 670(L)*185(W)*255(H)
RM-12600-C
12V 600Ah
Nominal Voltage : 12.8V
Operating Voltage range : 10V~14.4V
Standard Charge/Discharge : Ch. 150A/Disch. 600A
Max. Charge/Discharge : Ch. 300A/Disch. 1200A
Ah : 600Ah
Size : 820(L)*317(W)*15(0H)
RM-12900-A
12V 900Ah
Nominal Voltage : 12.8V
Operating Voltage range : 10V~14.4V
Standard Charge/Discharge : Ch. 200A/Disch. 900A
Max. Charge/Discharge : Ch. 400A/Disch. 1800A
Ah : 900Ah
Size : 360(L)*540(W)*255(H)
RM-12900-B 12V 900Ah
Nominal Voltage : 12.8V
Operating Voltage range : 10~14.4V
Standard Charge/Discharge : Ch. 200A/Disch. 900A
Max. Charge/Discharge : Ch. 400A/Disch. 1800A
Ah : 900Ah
Size : 970(L)*185(W)*255(H)
RM-24300
24V 300Ah
Nominal Voltage : 25.6V
Operating Voltage range : 20~28.8V
Standard Charge/Discharge : Ch. 70A/Disch. 300A
Max. Charge/Discharge : Ch. 150A/Disch. 600A
Ah : 300Ah
Size : 360(L)*380(W)*255(H)
Lithium-ion
RM-2430 24V 30Ah
Nominal Voltage : 25.2V
Operating Voltage range : 21~29.4V
Standard Charge/Discharge : Ch. 7~10A/Disch. 30A
Max. Charge/Discharge : Ch. 15A/Disch. 60A
Ah : 30Ah
Size : 180(L)*150(W)*80(H)
RM-2450 24V 50Ah
Nominal Voltage : 25.2V
Operating Voltage range : 21~29.4V
Standard Charge/Discharge : Ch. 10~15A/Disch. 50A
Max. Charge/Discharge : Ch. 25A/Disch. 100A
Ah : 50Ah
Size : 200(L)*130(W)*160(H)
RM-2480 24V 80Ah
Nominal Voltage : 25.2V
Operating Voltage range : 21~29.4V
Standard Charge/Discharge : Ch. 20A/Disch. 80A
Max. Charge/Discharge : Ch. 40A/Disch. 160A
Ah : 80Ah
Size : 200(L)*200(W)*160(H)
RM-24100 24V 100Ah
Nominal Voltage : 25.2V
Operating Voltage range : 21~29.4VV
Standard Charge/Discharge : Ch. 20~25A/Disch. 100A
Max. Charge/Discharge : Ch. 50A/Disch. 200A
Ah : 100Ah
Size : 200(L)*250(W)*160(H)
RM-24150 24V 150Ah
Nominal Voltage : 25.2V
Operating Voltage range : 21~29.4V
Standard Charge/Discharge : Ch. 30~40A/Disch. 150A
Max. Charge/Discharge : Ch. 70A/Disch. 300A
Ah : 150Ah
Size : 250(L)*300(W)*160(H)
RM-24200 24V 200Ah
Nominal Voltage : 25.2V
Operating Voltage range : 21~29.4V
Standard Charge/Discharge : Ch. 50A/Disch. 200A
Max. Charge/Discharge : Ch. 100A/Disch. 400A
Ah : 200Ah
Size : 250(L)*400(W)*160(H)
RM-2430 24V 300Ah
Nominal Voltage : 25.2V
Operating Voltage range : 21~29.4V
Standard Charge/Discharge : Ch. 75A/Disch. 300A
Max. Charge/Discharge : Ch. 150A/Disch. 600A
Ah : 300Ah
Size : 475(L)*305(W)*185(H)
RM-3610 36V 10Ah
Nominal Voltage : 36V
Operating Voltage range : 30~42V
Standard Charge/Discharge : Ch. 3A/Disch. 10A
Max. Charge/Discharge : Ch. 5A/Disch. 20A
Ah : 10Ah
Size : 100(L)*125(W)*80(H)
RM-3620 36V 20Ah
Nominal Voltage : 36V
Operating Voltage range : 30~42V
Standard Charge/Discharge : Ch. 5A/Disch. 20A
Max. Charge/Discharge : Ch. 10A/Disch. 40A
Ah : 20Ah
Size : 100(L)*240(W)*80(H)
RM-3640 36V 40Ah
Nominal Voltage : 36V
Operating Voltage range : 30~42V
Standard Charge/Discharge : Ch. 10A/Disch. 40A
Max. Charge/Discharge : Ch. 20A/Disch. 80A
Ah : 40Ah
Size : 200(L)*240(W)*80(H)
RM-3680 36V 80Ah
Nominal Voltage : 36V
Operating Voltage range : 30~42V
Standard Charge/Discharge : Ch. 20A/Disch. 80A
Max. Charge/Discharge : Ch. 40A/Disch. 160A
Ah : 100Ah
Size : 240(L)*240(W)*160(H)
RM-36100 36V 100Ah
Nominal Voltage : 36V
Operating Voltage range : 30~42V
Standard Charge/Discharge : Ch. 25A/Disch. 100A
Max. Charge/Discharge : Ch. 50A/Disch. 200A
Ah : 100Ah
Size : 240(L)*240(W)*160(H)
RM-4830 48V 30Ah
Nominal Voltage : 46.8V
Operating Voltage range : 36.4~54.6V
Standard Charge/Discharge : Ch. 8A/Disch. 30A
Max. Charge/Discharge : Ch. 15A/Disch. 60A
Ah : 30Ah
Size : 310(L)*150(W)80(H)
RM-4850 48V 50Ah
Nominal Voltage : 46.8V
Operating Voltage range : 39~54.6V
Standard Charge/Discharge : Ch. 13A/Disch. 50A
Max. Charge/Discharge : Ch. 25A/Disch. 100A
Ah : 50Ah
Size : 310(L)*250(W)*80(H)
RM-48100 48V 100Ah
Nominal Voltage : 46.8V
Operating Voltage range : 39~54.6V
Standard Charge/Discharge : Ch. 25A/Disch. 100A
Max. Charge/Discharge : Ch. 50A/Disch. 200A
Ah : 100Ah
Size : 340(L)*250(W)*160(H)
RM-48150 48V 30Ah
Nominal Voltage : 46.8V
Operating Voltage range : 39~54.6V
Standard Charge/Discharge : Ch. 35A/Disch. 150A
Max. Charge/Discharge : Ch. 70A/Disch. 300A
Ah : 150Ah
Size : 500(L)*250(W)160(H)
RM-6015 60V 15Ah
Nominal Voltage : 57.6V
Operating Voltage range : 39~54.6V
Standard Charge/Discharge : Ch. 4A/Disch. 15A
Max. Charge/Discharge : Ch. 8A/Disch. 30A
Ah : 15Ah
Size : 380(L)*75(W)*80(H)
RM-6030 60V 30Ah
Nominal Voltage : 57.6V
Operating Voltage range : 48~67.2V
Standard Charge/Discharge : Ch. 8A/Disch. 30A
Max. Charge/Discharge : Ch. 15A/Disch. 60A
Ah : 30Ah
Size : 380(L)*150(W)*80(H)
RM-6050 60V 50Ah
Nominal Voltage : 57.6V
Operating Voltage range : 48~67.2V
Standard Charge/Discharge : Ch. 13A/Disch. 50A
Max. Charge/Discharge : Ch. 25A/Disch. 100A
Ah : 50Ah
Size : 380(L)*250(W)*80(H)
RM-60100 60V 100Ah
Nominal Voltage : 57.6V
Operating Voltage range : 48~67.2V
Standard Charge/Discharge : Ch. 25A/Disch. 100A
Max. Charge/Discharge : Ch. 50A/Disch. 200A
Ah : 100Ah
Size : 380(L)*250(W)*160(H)
RM-7230 72V 30Ah
Nominal Voltage : 72V
Operating Voltage range : 60~84V
Standard Charge/Discharge : Ch. 8A/Disch. 30A
Max. Charge/Discharge : Ch. 15A/Disch. 60A
Ah : 30Ah
Size : 250(L)*150(W)*160(H)
RM-7250 72V 50Ah
Nominal Voltage : 72V
Operating Voltage range : 60~84V
Standard Charge/Discharge : Ch. 13A/Disch. 50A
Max. Charge/Discharge : Ch. 25A/Disch. 100A
Ah : 50Ah
Size : 250(L)*250(W)*160(H)
RM-72100 72V 100Ah
Nominal Voltage : 72V
Operating Voltage range : 60~84V
Standard Charge/Discharge : Ch. 25A/Disch. 100A
Max. Charge/Discharge : Ch. 50A/Disch. 200A
Ah : 100Ah
Size : 250(L)*490(W)*160(H)
Lithium-ion
36V KC Certification
48V KC Certification
52V KC Certification
60V KC Certification
LiFePo4
RM-1230-A 12V 30Ah
Nominal Voltage : 12.8V
Operating Voltage range : 10~14.4V
Standard Charge/Discharge : Ch. 7A/Disch. 30A
Max. Charge/Discharge : Ch. 15A/Disch. 60A
Ah : 30Ah
Size : 197(L)*128(W)*220(H)
RM-12300 12V 300Ah
Nominal Voltage : 12.8V
Operating Voltage range : 10~14.4V
Standard Charge/Discharge : Ch. 70A/Disch. 300A
Max. Charge/Discharge : Ch. 150A/Disch. 600A
Ah : 300Ah
Size : 380(L)*185(W)*255(H)
RM-12600-A 12V 600Ah
Nominal Voltage : 12.8V
Operating Voltage range : 10~14.4V
Standard Charge/Discharge : Ch. 150A/Disch. 600A
Max. Charge/Discharge : Ch. 300A/Disch. 1200A
Ah : 600Ah
Size : 380(L)*360(W)*255(H)
RM-12600-B 12V 600Ah
Nominal Voltage : 12.8V
Operating Voltage range : 10~14.4V
Standard Charge/Discharge : Ch. 150A/Disch. 600A
Max. Charge/Discharge : Ch. 300A/Disch. 1200A
Ah : 600Ah
Size : 670(L)*185(W)*255(H)
RM-12600-C 12V 600Ah
Nominal Voltage : 12.8V
Operating Voltage range : 10~14.4V
Standard Charge/Discharge : Ch. 150A/Disch. 600A
Max. Charge/Discharge : Ch. 300A/Disch. 1200A
Ah : 600Ah
Size : 820(L)*317(W)*150(H)
RM-12900-A 12V 900Ah
Nominal Voltage : 12.8V
Operating Voltage range : 10V~14.4V
Standard Charge/Discharge : Ch. 200A/Disch. 900A
Max. Charge/Discharge : Ch. 400A/Disch. 1800A
Ah : 900Ah
Size : 360(L)*540(W)*255(H)
RM-12900-B 12V 900Ah
Nominal Voltage : 12.8V
Operating Voltage range : 10~14.4V
Standard Charge/Discharge : Ch. 200A/Disch. 900A
Max. Charge/Discharge : Ch. 400A/Disch. 1800A
Ah : 900Ah
Size : 970(L)*185(W)*255(H)
RM-24300 24V 300Ah
Nominal Voltage : 25.6V
Operating Voltage range : 20~28.8V
Standard Charge/Discharge : Ch. 70A/Disch. 300A
Max. Charge/Discharge : Ch. 150A/Disch. 600A
Ah : 300Ah
Size : 360(L)*380(W)*255(H)
