Wireless charging solution
Wireless charging solution

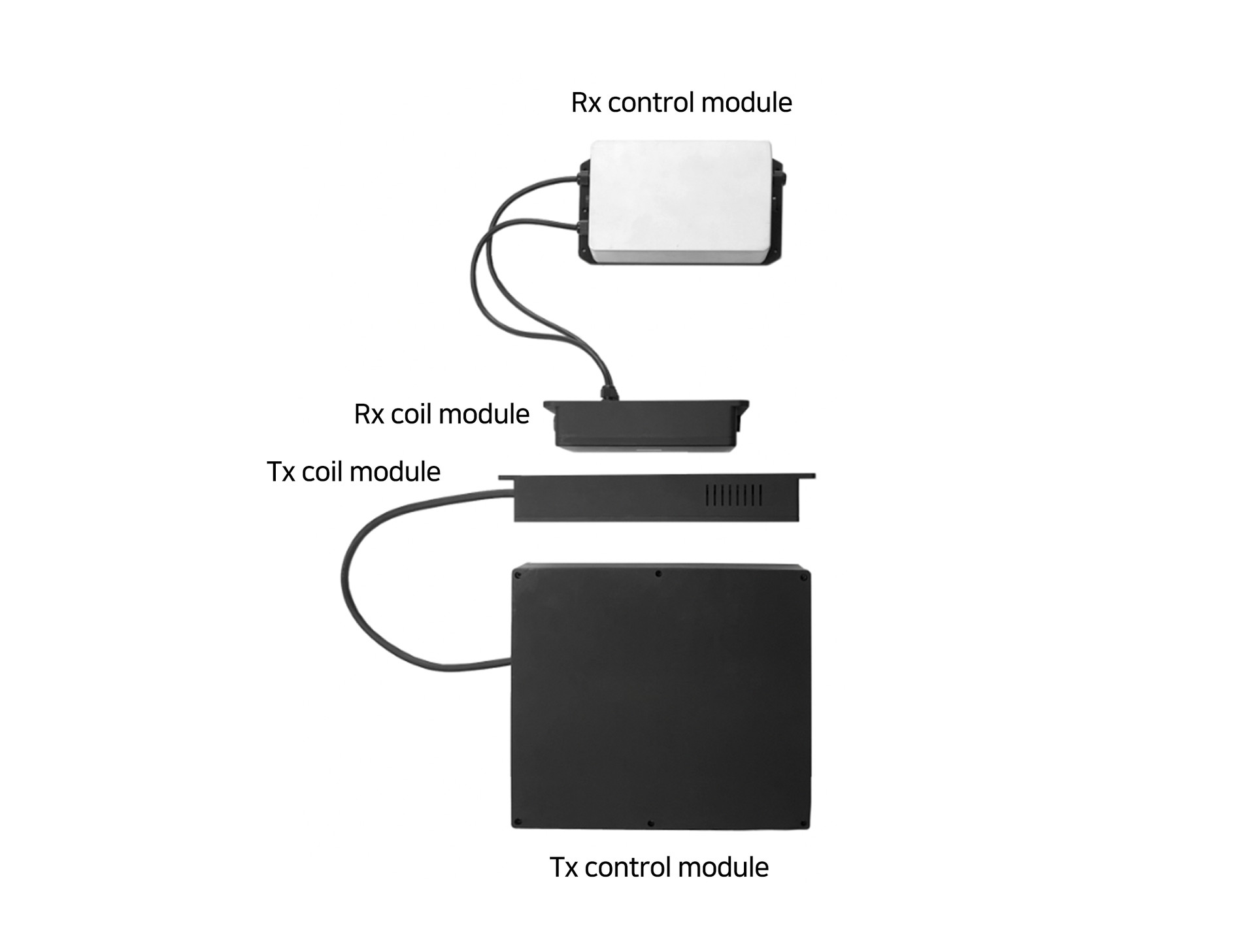

Robot Solution
High Power Charging
- Max. Charging power : 300W
Stability
- F.O.D Algorithm
- OVP, OCP, OTP Algorithm
- High Selected H/W Interrupt
High Efficiency System
- MEPT Algorithm
(Based on Current Control)
- Mutual Inductance Tracking
Smart Management
- Hybrid Communication
(In-band&Out of band)
- Cloud Power Management System
| System | Frequency | 85 kHz |
| Charging Efficiency (Typ.) | 88% (DC to Battery) | |
| Charging Range (Max.) | 0-50mm distance offset ±70mm x-axis offset ±50mm y-axis offset | |
| Communication | Wi-Fi or LTE | |
Transmitter (Tx) | Input Voltage | 220 VAC |
| Input Current (Max.) | 1.5A | |
| Output Voltage Range | 15-29.4V | |
Receiver (Rx) | Output Charging Current | 10A |
| Charging Power (Max.) | 294W |

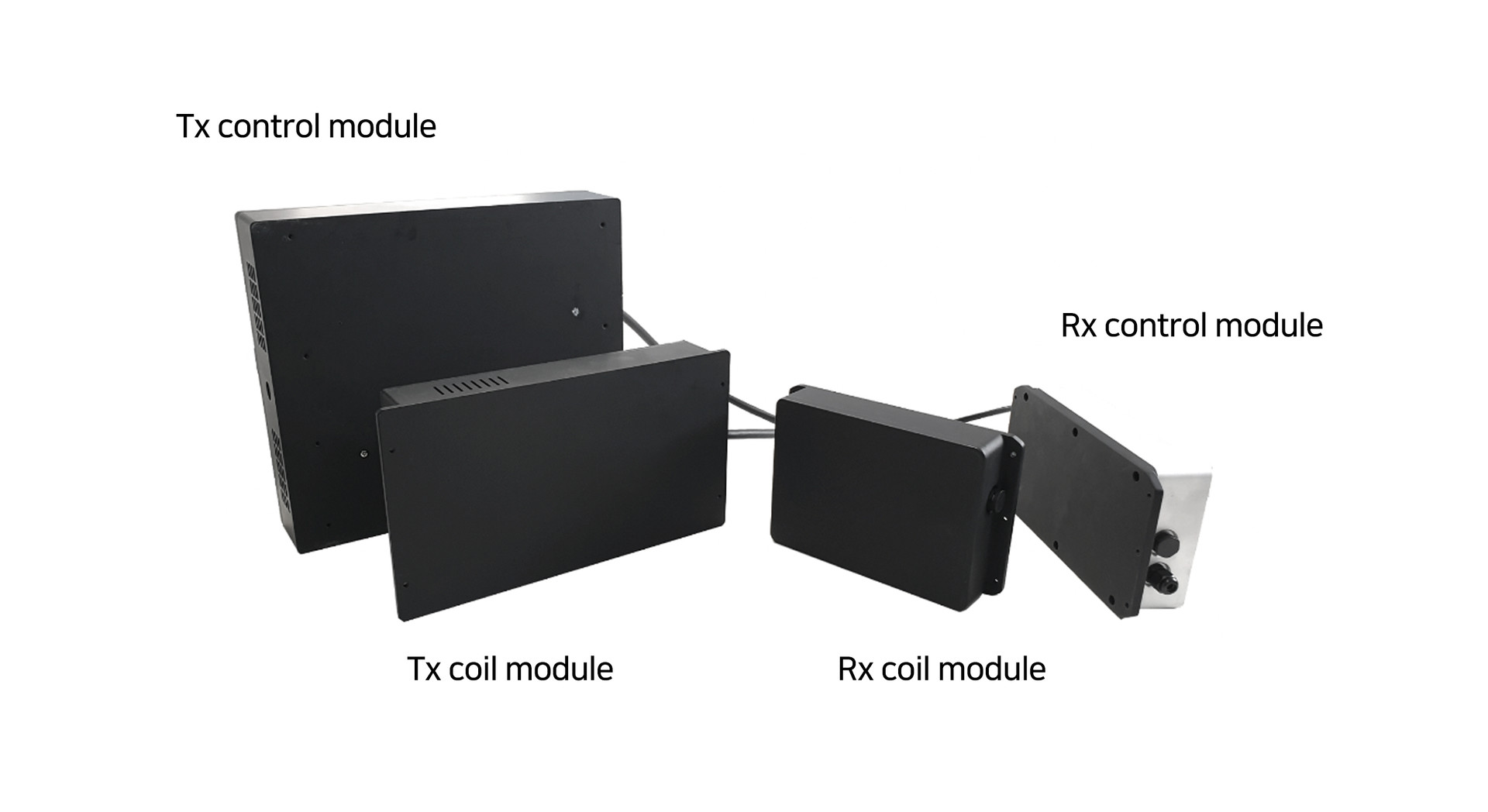

Robot Solution
High Power Charging
- Max. Charging power : 300W
Stability
- F.O.D Algorithm
- OVP, OCP, OTP Algorithm
- High Selected H/W Interrupt
High Efficiency System
- MEPT Algorithm
(Based on Current Control)
- Mutual Inductance Tracking
Smart Management
- Hybrid Communication(In-band&Out of band)
- Cloud Power Management System
System | Frequency | 85 kHz |
| Charging Efficiency (Typ.) | 88% (DC to Battery) | |
| Charging Range (Max.) | 0-50mm distance offset ±70mm x-axis offset ±50mm y-axis offset | |
| Communication | Wi-Fi or LTE | |
Transmitter(Tx) | Input Voltage | 220 VAC |
| Input Current (Max.) | 1.5A | |
Receiver(Rx) | Output Voltage Range | 15-29.4V |
| Output Charging Current | 10A | |
| Charging Power (Max.) | 294W |
